SKU: SE35-EPR
BRAND: KFI

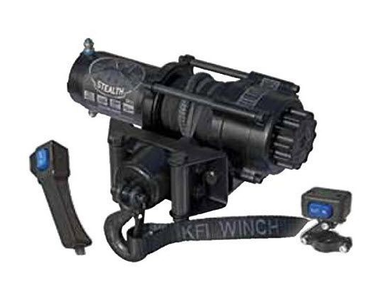

Give your machine a leg up on the trail with the Polaris Ranger 3500lb Stealth Winch. 3500lbs can get you out of just about any sticky situation, haul that extra equipment or even tow another vehicle. This stealth series winch features a 50’ synthetic cable with 5' protective sheath and end loop, cable hook stopper, free-spooling clutch for faster line draw, water-resistant seal and a dynamic and mechanical braking system. Winch dimensions are 12.97" L x 4.06" D x 4.2" H so that you take up minimal space but pack an incredible punch when it comes to freeing yourself from your next mud hole.
The Polaris Ranger 3500lb Stealth Winch kit is packed with essential parts to keep your UTV going strong, including a handheld 14’ corded remote for complete control at a longer range, cable hook stopper, Deluxe Handlebar-Mounted Mini-Rocker Control Switch, a Corded Remote Switch and heavy-duty electric contactor that gives you full control of the power distribution in your winch. With a 12V DC, 1.5 hp motor, you can rest assured that this stealth series winch can take on just about any job. Easily assemble this winch and get back to punishing the terrain. The Polaris Ranger 3500lb Stealth Winch is backed by a KFI Limited 1 Year Warranty.
Stealth Winch Features:
- 3500lb Stealth Winch
- Water Resistant Seals
- Synthetic Cable
- Handheld Corded Remote
- Heavy Duty Electric Contactor
- Cable Hook Stopper
- Does NOT include the Model Specific Winch Mounts
Dash Rocker Switch KIT Specifications:
- This kit includes the Rocker Switch and the 10' Wire Harness with plug for easy wiring installation
- Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor
- Blue LED illuminated when your key is turned on to allow you to see at night
- Circuit Type (ON)-OFF-(ON)
- Double pole Rocker Switch #UTV-DRS. This mean two contact points instead of just one for better repeatability operation.
- Requires Mounting hole 0.830” x 1.450” (standard on most UTV’s)
- Works with Panel Thickness ranging from .030” to .250” thick
- Max Current Rating: 20A 12VDC and 15A 24VDC
- Silver Plated Terminals
- Requires Standard ATV Winch Contactor to control Winch
- See below Wiring Schematic
SE35-EPR Specifications | |
| Model | SE35-EPR ATV Series |
| Rated Line Pull | 3500 lbs. |
| Motor | 12V DC, 1.5 hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 1.5" (D) x 3.15" (L) |
| Synthetic Cable | 3/16" (D) x 50' (L) Smoke color |
| Fairlead | Multi-directional POM Roller |
| Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch |
| Winch Dimensions | 12.97" L x 4.06" D x 4.2" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 24.8 lbs. (complete kit) |
Featured Blog Post: Check out our blog post to learn how to install your Polaris Ranger winch!
