Polaris Ranger XP 1000 Bundle - 4'' Portals & 6'' Big Lift by High Lifter
$5,790.00
$5,674.20
SKU: PGL-430DI-RNG1-3-EPR
BRAND: High Lifter

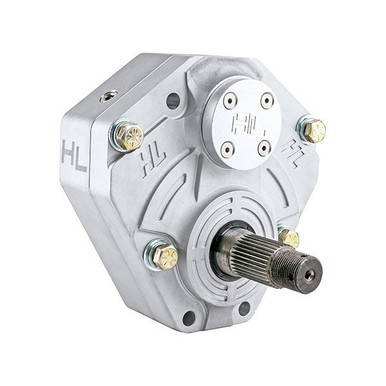

This High Lifter 4'' Portal Gear Lift is made tough and ready for any challenge. Now engineered with a gearing setup that allows two idler gears in the portal box to spread the load between twice as many teeth on the gears. This doubles the area and reduces the stress by half, allowing more abuse.
What does the Dual Idler Gear Lift offer?
- High Lifter improved the portal design by adding a second idler gear in the gear box
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
- You gain more reliable torque transfer
- Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
- Gear reduction extends brake life by needing brakes less often due to greatly improved engine braking
- Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!
Why is this 4" kit better than our competitor?
Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability Okay
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
Rotors
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
Fitment
2021 Polaris Ranger 1000 XP Trail Boss
2021 Polaris Ranger 1000 XP Texas
2021 Polaris Ranger 1000 XP High Lifter Edition
2021 Polaris Ranger 1000 XP NorthStar Premium
2021 Polaris Ranger 1000 XP NorthStar Ultimate
2021 Polaris Ranger 1000 XP NorthStar Trail Boss
2021 Polaris Ranger 1000 XP Crew Trail Boss
2021 Polaris Ranger 1000 XP Crew Texas
2021 Polaris Ranger 1000 XP Crew High Lifter Edition
2021 Polaris Ranger 1000 XP Crew NorthStar Ultimate
2021 Polaris Ranger 1000 XP Crew NorthStar Trail Boss
2021 Polaris Ranger 1000 XP Crew NorthStar Premium
2021 Polaris Ranger 1000 XP Big Game
2021 Polaris Ranger 1000 XP Crew Big Game
2021 Polaris Ranger 1000 XP Waterfowl
2021 Polaris Ranger 1000 XP Crew Waterfowl
