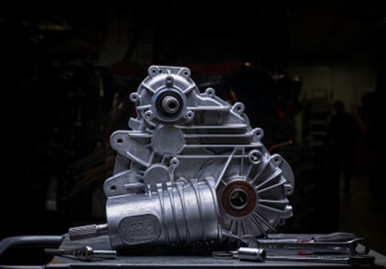

Polaris Ranger XP 900 Complete Heavy-Duty Transmission by Super ATV

SKU: TRAN-P-RAN900-CONF-EPR
$3,479.95
Or
In Stock: Guaranteed 3 Business Day Delivery

Add a Protection Plan

See plan details

Product Information

SKU: TRAN-P-RAN900-CONF-EPR
BRAND: SuperATV

The Best Built-to-Order Transmission

You’re only riding as long as your transmission is running. So why wouldn’t you want the strongest tranny on the market? Get SuperATV’s Complete Heavy-Duty Transmission for your Polaris Ranger XP 900 to enjoy hard rides and confident cruising. Every part of this transmission is built to order and upgraded over stock. Thanks to perfect meshing, you’ll never have to worry about slipped gears while you’re flooring it. Throw in an ultra-durable case and you’ve got the best dang UTV transmission on the market.

A Reverse Chain That’s Stronger Than Stock

Your stock reverse chain might be good, but is it great? We upgraded our reverse chain to make it nearly two times stronger than stock. Thanks to dual chains, you can throw it into reverse whenever you want. Steep hills? Thick sludge? Not a problem—our reverse chain will pull you through situations that would make your OEM one snap.

Better Pinion and Snorkel Gears

You’d be hard pressed to find a better pinion and snorkel gear than ours. They’re made from one of the toughest gear materials on the planet: 9310 alloy steel. Precision engineering ensures they’re perfectly lapped. In other words, they’re broken in together for perfect mating every time. Throw in a 300M front output shaft and you’re guaranteed smooth, strong, and flawless operation.

Thicker and Stronger Pinion Bearing Retainer

We spared no details when designing this transmission, and our pinion bearing retainer is just further proof of that. Your stock bearing retainer can let the pinion gear pull away from the snorkel gear. That type of breakage can spell disaster for your ride. We fixed that issue with a thicker and stronger bearing retainer. It holds your gears firmly in place for more reliable operation.

Protected by a Top-Notch Transmission Case

So it’s clear that all of the internals have been upgraded over OEM—but what about the case? We recognize that the housing is arguably one of the most important pieces of a transmission. It protects and holds everything in place. That’s why we use 68% more material on the axle output and snorkel tube. Additional ribs and gussets add even more strength and keep everything running cool.

Multiple Gear Reduction Options Available

What would you do with some extra torque? Let’s find out. With our complete transmission, you get to choose from a stock, 12.5%, and 25% gear reduction. The higher the gear reduction, the more capable your Ranger will be when faced with mud, hills, and rough trails.

Transmission Features:

  • Complete, assembled, drop-in transmission
  • Built to order and thoroughly tested
  • Upgraded snorkel gear set
    • Pinion shaft and gears made with 9310 heavy-duty steel
    • Front output shaft made with 300M
    • 2.5x stronger than stock
    • Lapped gears are mated perfectly for less wear and smoother operation
    • Strengthens the entire drivetrain
  • Upgraded reverse chain
    • 2x stronger than stock
    • Quieter than the competition
  • Upgraded transmission case
    • More support ribs and gussets than stock
    • Extra fins help keep your transmission cool
    • 68% more metal reinforcing the snorkel tube and axle output areas
  • Multiple gear reductions available
    • Stock gear reduction
    • 12.5% gear reduction
    • 25% gear reduction

Product Fitment

Mid-Size Vehicle2021 Ranger 5702020 Ranger 5702019 Ranger 5702018 Ranger 5702017 Ranger 5702016 Ranger 5702015 Ranger 570
Full-Size Vehicle2025 Ranger 10002025 Ranger XP 1000 (Includes Northstar)2024 Ranger 10002024 Ranger Kinetic2024 Ranger XP 1000 (Includes Northstar)2023 Ranger 10002023 Ranger Kinetic2023 Ranger XP 1000 (Includes Northstar)2022 Ranger 10002022 Ranger XP 1000 (Includes Northstar)2021 Ranger 10002021 Ranger XP 1000 (Includes Northstar)2020 Ranger 10002020 Ranger XP 1000 (Includes Northstar)2019 Ranger XP 1000 (Includes Northstar)2019 Ranger XP 9002018 Ranger XP 1000 (Includes Northstar)2018 Ranger XP 9002017 Ranger XP 1000 (Includes Northstar)2017 Ranger XP 9002016 Ranger XP 5702016 Ranger XP 9002015 Ranger 5702015 Ranger XP 9002014 Ranger XP 9002013 Ranger XP 900
Crew Vehicle2025 Ranger Crew 10002025 Ranger Crew 570-62025 Ranger Crew SP 570 (Includes Northstar)2025 Ranger Crew XP 1000 (Includes Northstar)2024 Ranger Crew 10002024 Ranger Crew 570-62024 Ranger Crew SP 570 (Includes Northstar)2024 Ranger Crew XP 1000 (Includes Northstar)2023 Ranger Crew 10002023 Ranger Crew 570-62023 Ranger Crew SP 570 (Includes Northstar)2023 Ranger Crew XP 1000 (Includes Northstar)2022 Ranger Crew 10002022 Ranger Crew 570-62022 Ranger Crew SP 570 (Includes Northstar)2022 Ranger Crew XP 1000 (Includes Northstar)2021 Ranger Crew 10002021 Ranger Crew 570-42021 Ranger Crew 570-62021 Ranger Crew XP 1000 (Includes Northstar)2020 Ranger Crew 10002020 Ranger Crew 570-42020 Ranger Crew 570-62020 Ranger Crew XP 1000 (Includes Northstar)2019 Ranger Crew 570-42019 Ranger Crew 570-62019 Ranger Crew 9002019 Ranger Crew XP 1000 (Includes Northstar)2018 Ranger Crew 570-42018 Ranger Crew 570-62018 Ranger Crew 9002018 Ranger Crew Diesel2018 Ranger Crew XP 1000 (Includes Northstar)2017 Ranger Crew 570-42017 Ranger Crew 570-62017 Ranger Crew 9002017 Ranger Crew Diesel2017 Ranger Crew XP 1000 (Includes Northstar)2016 Ranger Crew 570-42016 Ranger Crew 570-62016 Ranger Crew 9002016 Ranger Crew Diesel2016 Ranger Crew XP 5702015 Ranger Crew 570-42015 Ranger Crew 570-62015 Ranger Crew 9002014 Ranger Crew 900
General Vehicle2025 General 10002025 General 4 XP 10002025 General XP 10002024 General 10002024 General 4 XP 10002024 General XP 10002023 General 10002023 General 4 XP 10002023 General XP 10002022 General 10002022 General 4 10002022 General 4 XP 10002022 General XP 10002021 General 10002021 General 4 10002021 General 4 XP 10002021 General XP 10002020 General 10002020 General 1000 Sport2020 General 4 10002020 General 4 XP 10002020 General XP 10002019 General 10002019 General 4 10002018 General 10002018 General 4 10002017 General 10002017 General 4 10002016 General 1000
