SKU: PM400X4-EPR
BRAND: Rockford

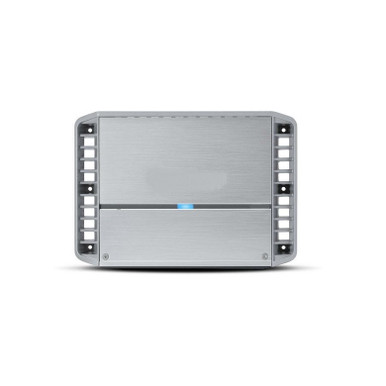

This is a 400 Watt 4-channel amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications.
This is perfect for 4-way front-stage/rear-fill or 3-way front-stage/subwoofer systems. Simply drop a pair of component speakers on the front channels and subs on the rear and BOOM - you got "The PUNCH." With its flexible design, the PM400X4 is an excellent amplifier choice for virtually any vehicle.
Punch Marine 400 Watt 4-Channel Amplifier Features:
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
Specs:
- Number of Channels - 4
- Total Power (Sum of Rated Power) - 400 Watts
- Rated Power (RMS Continuous Power) - 50 Watts x 4 @ 4-Ohm, 100 Watts x 4 @ 2-Ohm, 200 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®) - 82 Watts x 4 @ 4-Ohm, 137 Watts x 4 @ 2-Ohm, 266 Watts x 2 @ 4-Ohm Bridged
- Bridgeable - Yes
- Frequency Response - 20Hz to 20kHz +/- 1.0dB
- Input Sensitivity - 150 mV - 12 V
- Circuit Topology Class - Class A/B
- Efficiency (average) - 67% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise) - 4-Ohm: <1.0%, 2-Ohm: <1.0%
- Signal Input - Hi/Low level: 2 RCA pair
- Tone Controls - Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or, Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz, Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or, Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz, Function depends upon LP/AP/HP switch position
- Crossover Controls - Front High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth, Rear High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth, All-Pass: Yes
- Visual Indicators - Power/Protect/Thermal LED, Input Clip LED3, Output Clip LED1,2,3 (LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD)
- Power Wire Gauge - 8 AWG to 4 AWG
- Power Input Connector - Captive C-Clamp
- Speaker Wire Gauge - 8 AWG to 18 AWG
- Speaker Output Connector - Captive C-Clamp
- Cooling - Convection
- Heatsink
- Operating Voltage - 9 - 16 VDC
- Recommended Fuse (not included) - 60 A
- Average Current Draw (13.8V Music) - 30 A
- Max. Current Draw (13.8V Sinewave) - 60 A
- Suggested Alternator - 75 A
